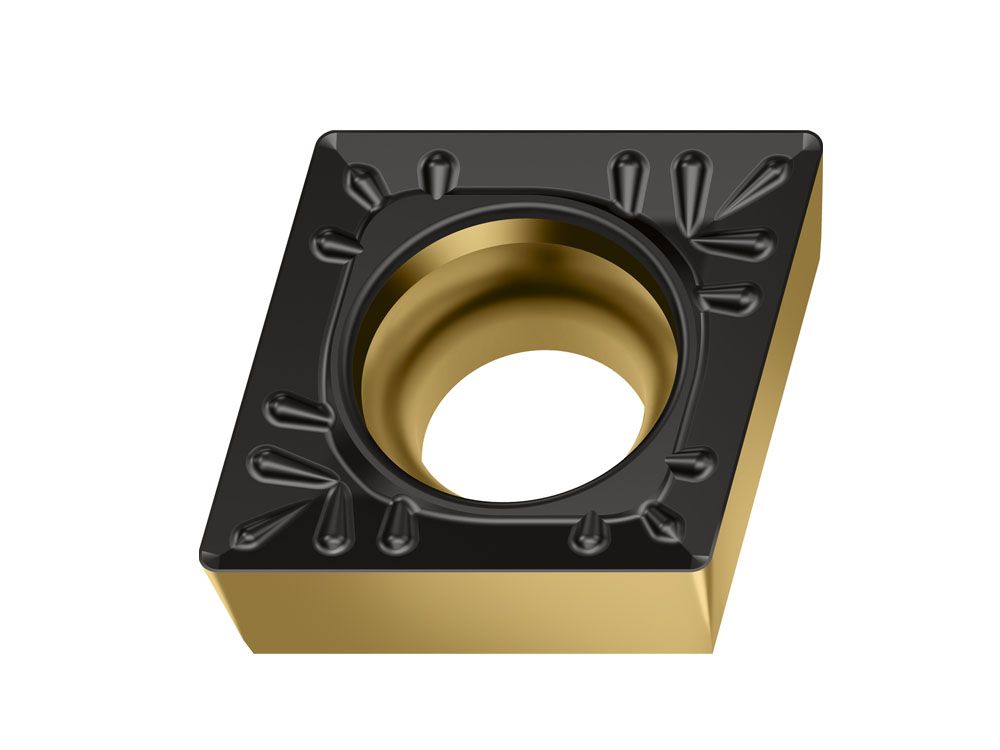

R0.8鋼件正角車刀片CCMT09T308-RP4 WPP10G
R0.8鋼件正角車刀片CCMT09T308-RP4 WPP10G
品名
鋼件正角車刀片
型號
CCMT09T308-RP4 WPP10G
產地
德國進口W
名稱:
鋼件正角車刀片
型號:
CCMT09T308-RP4 WPP10G
切削刃角:
80度菱形
圓角半徑:
0.8
厚度:
3.97
工序類型:
鋼件正角車刀片
槽型:
材質牌號:
WPP10G
加工材料:
鋼件
R0.8鋼件正角車刀片CCMT09T308-RP4 WPP10G
牌號名稱
WPP10G
詳情描述
耐磨損，適合鋼件連續切削以及輕微的斷續切削。
高度織紋細柱狀MT-TiCN —對后刀面磨損具有很好的承受性 多層 MT-TiCN 結構改善了晶格組織的彈性屬性 高度織紋狀的 Al2O3 —可提高對于月牙洼磨損的耐受性 多級后處理可實現光滑的前刀面、減小摩擦并改進韌性。
應用領域為汽車或能源行業 (例如傳動件、齒輪、風電輪轂)、通用機械制造 (例如鍛造機軸) 或軌道工業 (例如輪對) 中的大規模和批量生產。
高度織紋細柱狀MT-TiCN —對后刀面磨損具有很好的承受性 多層 MT-TiCN 結構改善了晶格組織的彈性屬性 高度織紋狀的 Al2O3 —可提高對于月牙洼磨損的耐受性 多級后處理可實現光滑的前刀面、減小摩擦并改進韌性。
應用領域為汽車或能源行業 (例如傳動件、齒輪、風電輪轂)、通用機械制造 (例如鍛造機軸) 或軌道工業 (例如輪對) 中的大規模和批量生產。
ISO應用范圍1
P10-P30
ISO應用范圍2
K20-K25
基體類型
硬質合金
牌號涂層
CVD MT-TiCN-Al2O3
外觀顏色
黑色+金色
材料舉例
45#鋼 27SiMn GCR15 CF53 55# 65Mn
低碳鋼，長切屑C<0.25%，硬度<125HB;
低碳鋼，短切屑，易切鋼C<0.25%，硬度<125HB，C15, Ck22, ST37-2, S235JR, 9SMnPb28, GS38；
中碳鋼和高碳鋼C>0.25%，硬度<220HB(<25HRC),ST52, S355JR, C35, GS60, Cf53;
合金鋼和工具鋼C>0.25%，硬度<330HB(<35HRC),16MnCr5, Ck45, 緊固件用合金鋼21CrMoV5-7, 高硫中碳易切削鋼38SMn28 ;
合金鋼和工具鋼C>0.25%，硬度340-450HB(35-48HRC),軸承鋼100Cr6, 調質鋼30CrNiMo8, 齒輪鋼42CrMo4, 彈簧鋼C70W2, 高速工具鋼S6525, 高錳鋼X120Mn12,鑄鋼;
鐵素體、馬氏體、和PH不銹鋼,硬度<330HB(<35HRC);
高強度鐵素體、馬氏體、和PH不銹鋼,硬度340-450HB(35-48HRC),高碳高鉻馬氏體不銹鋼X102CrMo17, 鑄造耐蝕不銹鋼G-X120Cr29;
灰鑄鐵 硬度120–290HB(<32HRC), GG15, GG25, GG30, GG40, GTW40,HT250;
低-中強度延性鐵 (球墨鐵)和蠕墨鑄鐵(CGI) 硬度130–260HB(<28HRC), GGG40, GTS35,QT250;
高強度延性鐵和奧氏體回火處理延性鐵(ADI) 硬度180–350HB(<43HRC), GGG60, GTW55, GTS65;
相關型號
CCGT09T304-MP4 WPP10G CCGT09T308-MP4 WPP10G CCGT120408-MP4 WPP10G CCMT060202-FP4 WPP10G CCMT060204-FP4 WPP10G CCMT060204-FP6 WPP10G CCMT060204-FW4 WPP10G CCMT060204-MP4 WPP10G CCMT060204-MP6 WPP10G CCMT060204-RP4 WPP10G CCMT060208-FP4 WPP10G CCMT060208-FW4 WPP10G CCMT060208-MP4 WPP10G CCMT09T302-FP4 WPP10G CCMT09T304-FP4 WPP10G CCMT09T304-FP6 WPP10G CCMT09T304-FW4 WPP10G CCMT09T304-MP4 WPP10G CCMT09T304-MP6 WPP10G CCMT09T304-MW4 WPP10G CCMT09T304-RP4 WPP10G CCMT09T308-FP4 WPP10G CCMT09T308-FP6 WPP10G CCMT09T308-FW4 WPP10G CCMT09T308-MP4 WPP10G CCMT09T308-MP6 WPP10G CCMT09T308-MW4 WPP10G CCMT09T308-RP4 WPP10G CCMT120404-FP4 WPP10G CCMT120404-MP4 WPP10G CCMT120404-RP4 WPP10G CCMT120408-FP4 WPP10G CCMT120408-MP4 WPP10G CCMT120408-MP6 WPP10G CCMT120408-MW4 WPP10G CCMT120408-RP4 WPP10G CCMT120412-RP4 WPP10G CNMG090304-FP5 WPP10G CNMG090304-MP3 WPP10G CNMG090308-FP5 WPP10G CNMG090308-MP3 WPP10G CNMG120404-FP5 WPP10G CNMG120404-FW5 WPP10G CNMG120404-MP3 WPP10G CNMG120404-MP5 WPP10G CNMG120404-MU5 WPP10G CNMG120408-FP5 WPP10G CNMG120408-FW5 WPP10G CNMG120408-MP3 WPP10G CNMG120408-MP5 WPP10G CNMG120408-MS3 WPP10G CNMG120408-MU5 WPP10G CNMG120408-MW5 WPP10G CNMG120408-RM5 WPP10G CNMG120408-RP5 WPP10G CNMG120408-RP7 WPP10G CNMG120412-FP5 WPP10G CNMG120412-MP3 WPP10G CNMG120412-MP5 WPP10G CNMG120412-MU5 WPP10G CNMG120412-MW5 WPP10G CNMG120412-RM5 WPP10G CNMG120412-RP5 WPP10G CNMG120412-RP7 WPP10G CNMG120416-MP5 WPP10G CNMG120416-MU5 WPP10G CNMG120416-RP5 WPP10G CNMG120416-RP7 WPP10G CNMG160608-MP5 WPP10G CNMG160608-RP5 WPP10G CNMG160608-RP7 WPP10G CNMG160612-MP5 WPP10G CNMG160612-MU5 WPP10G CNMG160612-RP5 WPP10G CNMG160612-RP7 WPP10G CNMG160616-MP5 WPP10G CNMG160616-MU5 WPP10G CNMG160616-RP5 WPP10G CNMG160616-RP7 WPP10G CNMG160624-RP5 WPP10G CNMG190608-RP5 WPP10G CNMG190612-RP5 WPP10G CNMG190612-RP7 WPP10G CNMG190616-RP5 WPP10G CNMG190616-RP7 WPP10G CNMG190624-RP5 WPP10G CNMM120408-HU3 WPP10G CNMM120408-HU5 WPP10G CNMM120412-HU3 WPP10G CNMM120412-HU5 WPP10G CNMM120412-HU7 WPP10G CNMM120416-HU3 WPP10G CNMM160612-HU3 WPP10G CNMM160612-HU5 WPP10G CNMM160612-HU7 WPP10G CNMM160616-HU3 WPP10G CNMM160616-HU5 WPP10G CNMM160616-HU7 WPP10G CNMM160624-HU3 WPP10G CNMM160624-HU7 WPP10G CNMM190612-HU3 WPP10G CNMM190612-HU5 WPP10G CNMM190612-HU7 WPP10G CNMM190616-HU3 WPP10G CNMM190616-HU5 WPP10G CNMM190616-HU7 WPP10G CNMM190616-NR6 WPP10G CNMM190624-HU5 WPP10G CNMM190624-HU7 WPP10G CPGT060204-MP4 WPP10G CPGT09T304-MP4 WPP10G CPGT09T308-MP4 WPP10G CPMT050204-FP4 WPP10G CPMT060204-FP4 WPP10G CPMT09T304-FP4 WPP10G CPMT09T308-FP4 WPP10G DCGT11T304-MP4 WPP10G DCGT11T308-MP4 WPP10G DCMT070202-FP4 WPP10G DCMT070204-FP4 WPP10G DCMT070204-FP6 WPP10G DCMT070204-FW4 WPP10G DCMT070204-MP4 WPP10G DCMT070204-RP4 WPP10G DCMT070208-FP4 WPP10G DCMT070208-FW4 WPP10G DCMT070208-MP4 WPP10G DCMT070208-RP4 WPP10G DCMT11T302-FP4 WPP10G DCMT11T304-FP4 WPP10G DCMT11T304-FP6 WPP10G DCMT11T304-FW4 WPP10G DCMT11T304-MP4 WPP10G DCMT11T304-MP6 WPP10G DCMT11T304-MW4 WPP10G DCMT11T304-RP4 WPP10G DCMT11T308-FP4 WPP10G DCMT11T308-FP6 WPP10G DCMT11T308-FW4 WPP10G DCMT11T308-MP4 WPP10G DCMT11T308-MP6 WPP10G DCMT11T308-MW4 WPP10G DCMT11T308-RP4 WPP10G DCMT11T312-MP4 WPP10G DCMT11T312-RP4 WPP10G DNMG110402-FP5 WPP10G DNMG110404-FP5 WPP10G DNMG110404-FW5 WPP10G DNMG110404-MP3 WPP10G DNMG110404-MP5 WPP10G DNMG110408-FP5 WPP10G DNMG110408-FW5 WPP10G DNMG110408-MP3 WPP10G DNMG110408-MP5 WPP10G DNMG110408-MU5 WPP10G DNMG110408-MW5 WPP10G DNMG110408-RP5 WPP10G DNMG110412-FP5 WPP10G DNMG110412-MP3 WPP10G DNMG110412-MP5 WPP10G DNMG110412-MW5 WPP10G DNMG110412-RP5 WPP10G DNMG150404-FP5 WPP10G DNMG150404-FW5 WPP10G DNMG150404-MP3 WPP10G DNMG150404-MP5 WPP10G DNMG150408-FP5 WPP10G DNMG150408-FW5 WPP10G DNMG150408-MP3 WPP10G DNMG150408-MP5 WPP10G DNMG150408-MU5 WPP10G DNMG150408-MW5 WPP10G DNMG150408-RP5 WPP10G DNMG150412-FP5 WPP10G DNMG150412-MP3 WPP10G DNMG150412-MP5 WPP10G DNMG150412-MW5 WPP10G DNMG150412-RP5 WPP10G DNMG150604-FP5 WPP10G DNMG150604-FW5 WPP10G DNMG150604-MP3 WPP10G DNMG150604-MP5 WPP10G DNMG150608-FP5 WPP10G DNMG150608-FW5 WPP10G DNMG150608-MP3 WPP10G DNMG150608-MP5 WPP10G DNMG150608-MU5 WPP10G DNMG150608-MW5 WPP10G DNMG150608-NS6 WPP10G DNMG150608-RP5 WPP10G DNMG150612-FP5 WPP10G DNMG150612-MP3 WPP10G DNMG150612-MP5 WPP10G DNMG150612-MU5 WPP10G DNMG150612-MW5 WPP10G DNMG150612-RP5 WPP10G DNMG150616-MP5 WPP10G DNMG150616-MU5 WPP10G DNMG150616-RP5 WPP10G DNMM150608-HU3 WPP10G DNMM150612-HU3 WPP10G DNMM150616-HU3 WPP10G DPMT070204-FP4 WPP10G DPMT11T304-FP4 WPP10G DPMT11T308-FP4 WPP10G RCMT0602M0-FP4 WPP10G RCMT0803M0-RP4 WPP10G RCMT10T3M0-HU6 WPP10G RCMT10T3M0-RP4 WPP10G RCMT1204M0-FP4 WPP10G RCMT1204M0-HU6 WPP10G RCMT1204M0-RP4 WPP10G RCMT1605M0-RP4 WPP10G RCMT1606M0-HU6 WPP10G RCMT1606M0-RP4 WPP10G RCMX2006M0-HU6 WPP10G RCMX2507M0-HU6 WPP10G RCMX3209M0-HU6 WPP10G SCMT060204-FP4 WPP10G SCMT09T304-FP4 WPP10G SCMT09T304-RP4 WPP10G SCMT09T308-FP4 WPP10G SCMT09T308-MP4 WPP10G SCMT09T308-RP4 WPP10G SCMT09T312-RP4 WPP10G SCMT120404-RP4 WPP10G SCMT120408-MP4 WPP10G SCMT120408-RP4 WPP10G SCMT120412-RP4 WPP10G SNMG090308-FP5 WPP10G SNMG090308-MP3 WPP10G SNMG120404-FP5 WPP10G SNMG120408-FP5 WPP10G SNMG120408-MP3 WPP10G SNMG120408-MP5 WPP10G SNMG120408-MU5 WPP10G SNMG120408-RP5 WPP10G SNMG120412-MP3 WPP10G SNMG120412-MP5 WPP10G SNMG120412-RP5 WPP10G SNMG120416-MP5 WPP10G SNMG120416-RP5 WPP10G SNMG120416-RP7 WPP10G SNMG150612-RP5 WPP10G SNMG150612-RP7 WPP10G SNMG150616-MP5 WPP10G SNMG150616-RP5 WPP10G SNMG150616-RP7 WPP10G SNMG190612-RP5 WPP10G SNMG190616-RP7 WPP10G SNMM120416-HU3 WPP10G SNMM150616-HU3 WPP10G SNMM150616-HU7 WPP10G SNMM150624-HU7 WPP10G SNMM190612-HU3 WPP10G SNMM190616-HU3 WPP10G SNMM190624-HU7 WPP10G SNMM250924-HU7 WPP10G TCGT110204-MP4 WPP10G TCMT090204-FP4 WPP10G TCMT090204-FW4 WPP10G TCMT110202-FP4 WPP10G TCMT110204-FP4 WPP10G TCMT110204-FW4 WPP10G TCMT110204-MP4 WPP10G TCMT110204-MP6 WPP10G TCMT110204-RP4 WPP10G TCMT110208-FP4 WPP10G TCMT110208-FW4 WPP10G TCMT110208-MP4 WPP10G TCMT16T304-FP4 WPP10G TCMT16T304-FW4 WPP10G TCMT16T304-MP4 WPP10G TCMT16T304-MP6 WPP10G TCMT16T304-RP4 WPP10G TCMT16T308-FP4 WPP10G TCMT16T308-FW4 WPP10G TCMT16T308-MP4 WPP10G TCMT16T308-MP6 WPP10G TCMT16T308-RP4 WPP10G TCMT16T312-RP4 WPP10G TNMG110304-FP5 WPP10G TNMG110304-MP3 WPP10G TNMG110308-FP5 WPP10G TNMG110308-MP3 WPP10G TNMG160404-FP5 WPP10G TNMG160404-FW5 WPP10G TNMG160404-MP3 WPP10G TNMG160404-MP5 WPP10G TNMG160404-MU5 WPP10G TNMG160408-FP5 WPP10G TNMG160408-FW5 WPP10G TNMG160408-MP3 WPP10G TNMG160408-MP5 WPP10G TNMG160408-MU5 WPP10G TNMG160408-MW5 WPP10G TNMG160408-RP5 WPP10G TNMG160412-FP5 WPP10G TNMG160412-MP3 WPP10G TNMG160412-MP5 WPP10G TNMG160412-MU5 WPP10G TNMG160412-MW5 WPP10G TNMG160412-RP5 WPP10G TNMG220404-MP5 WPP10G TNMG220408-MP3 WPP10G TNMG220408-MP5 WPP10G TNMG220408-RP5 WPP10G TNMG220412-MP3 WPP10G TNMG220412-MP5 WPP10G TNMG220412-RP5 WPP10G TNMG220416-MP5 WPP10G TNMG220416-RP5 WPP10G TNMG270612-MP5 WPP10G TNMG270612-RP5 WPP10G TNMM160412-HU3 WPP10G TNMM220416-HU3 WPP10G TPMT110204-FP4 WPP10G TPMT16T304-FP4 WPP10G VBMT110304-FP6 WPP10G VBMT110304-MP4 WPP10G VBMT110308-FP6 WPP10G VBMT110308-MP4 WPP10G VBMT160404-FP6 WPP10G VBMT160404-MP4 WPP10G VBMT160404-MP6 WPP10G VBMT160406-FP6 WPP10G VBMT160406-MP4 WPP10G VBMT160408-FP6 WPP10G VBMT160408-MP4 WPP10G VBMT160408-MP6 WPP10G VBMT160412-FP6 WPP10G VBMT160412-MP4 WPP10G VCMT110302-FP4 WPP10G VCMT110304-FP4 WPP10G VCMT110304-RP4 WPP10G VCMT110308-RP4 WPP10G VCMT160402-FP4 WPP10G VCMT160404-FP4 WPP10G VCMT160404-MP4 WPP10G VCMT160404-RP4 WPP10G VCMT160406-RP4 WPP10G VCMT160408-FP4 WPP10G VCMT160408-MP4 WPP10G VCMT160408-RP4 WPP10G VCMT160412-RP4 WPP10G VNMG160404-FP5 WPP10G VNMG160404-MP3 WPP10G VNMG160404-MP5 WPP10G VNMG160408-FP5 WPP10G VNMG160408-MP3 WPP10G VNMG160408-MP5 WPP10G VNMG160412-FP5 WPP10G VNMG160412-MP3 WPP10G VNMG160412-MP5 WPP10G VNMG220408-MP5 WPP10G WCMT040202-FP4 WPP10G WCMT040204-FP4 WPP10G WL25-VC0704L-FP4 WPP10G WL25-VC0704L-MP4 WPP10G WL25-VC0704N-FP4 WPP10G WL25-VC0704N-MP4 WPP10G WL25-VC0704R-FP4 WPP10G WL25-VC0704R-MP4 WPP10G WL25-VC0708L-FP4 WPP10G WL25-VC0708L-MP4 WPP10G WL25-VC0708N-FP4 WPP10G WL25-VC0708N-MP4 WPP10G WL25-VC0708R-FP4 WPP10G WL25-VC0708R-MP4 WPP10G WL25-VC0712N-MP4 WPP10G WL25-VC0716N-MP4 WPP10G WNMG060404-FP5 WPP10G WNMG060404-FW5 WPP10G WNMG060404-MP3 WPP10G WNMG060404-MP5 WPP10G WNMG060408-FP5 WPP10G WNMG060408-FW5 WPP10G WNMG060408-MP3 WPP10G WNMG060408-MP5 WPP10G WNMG060408-MU5 WPP10G WNMG060408-MW5 WPP10G WNMG060408-RP5 WPP10G WNMG060412-MP5 WPP10G WNMG060412-MW5 WPP10G WNMG060412-RP5 WPP10G WNMG080404-FP5 WPP10G WNMG080404-FW5 WPP10G WNMG080404-MP5 WPP10G WNMG080404-MU5 WPP10G WNMG080408-FP5 WPP10G WNMG080408-FW5 WPP10G WNMG080408-MP3 WPP10G WNMG080408-MP5 WPP10G WNMG080408-MU5 WPP10G WNMG080408-MW5 WPP10G WNMG080408-RM5 WPP10G WNMG080408-RP5 WPP10G WNMG080408-RP7 WPP10G WNMG080412-FP5 WPP10G WNMG080412-FW5 WPP10G WNMG080412-MP3 WPP10G WNMG080412-MP5 WPP10G WNMG080412-MU5 WPP10G WNMG080412-MW5 WPP10G WNMG080412-RP5 WPP10G WNMG080412-RP7 WPP10G WNMG080416-MP5 WPP10G WNMG080416-MU5 WPP10G WNMG080416-RP5 WPP10G WNMG100608-MP5 WPP10G WNMG100612-MP5 WPP10G WNMG100612-RP5 WPP10G WNMG100612-RP7 WPP10G WNMG100616-RP5 WPP10G WNMM100612-HU3 WPP10G WNMM100616-HU3 WPP10G
如果您需要采購R0.8鋼件正角車刀片CCMT09T308-RP4 WPP10G，可以聯系我們，我公司可以提供該產品型號的具體產品參數，并為您提供一個好的價格。數控刀具是機械制造中用于切削加工的工具，又稱切削工具。廣義的切削工具既包括刀具，還包括磨具；同時“數控刀具”除切削用的刀片外，還包括刀桿和刀柄等附件！我公司銷售車削刀具：外圓車削,內圓車削，重載車削，多任務加工；切斷，外圓切槽，內圓切槽，端面切槽，仿形切削；螺紋加工刀具：螺紋車削，螺紋銑削，攻絲；銑削刀具：方肩銑、邊緣銑，面銑高進給銑削，仿形銑削/輪廓銑削，切斷和銑槽，整體銑削刀具和可換刀頭螺紋銑削，倒角銑削；鉆削刀具：可轉位刀片鉆頭，可換頭鉆頭，整體硬質合金鉆頭；鏜削和鉸削刀具：粗鏜刀具，精鏜刀具，鉸刀；整體圓柄刀具：立銑刀 - 專用型 通用型，可換式銑刀頭，鉆頭 專用型 通用型，絲錐，鉸刀 。
-
