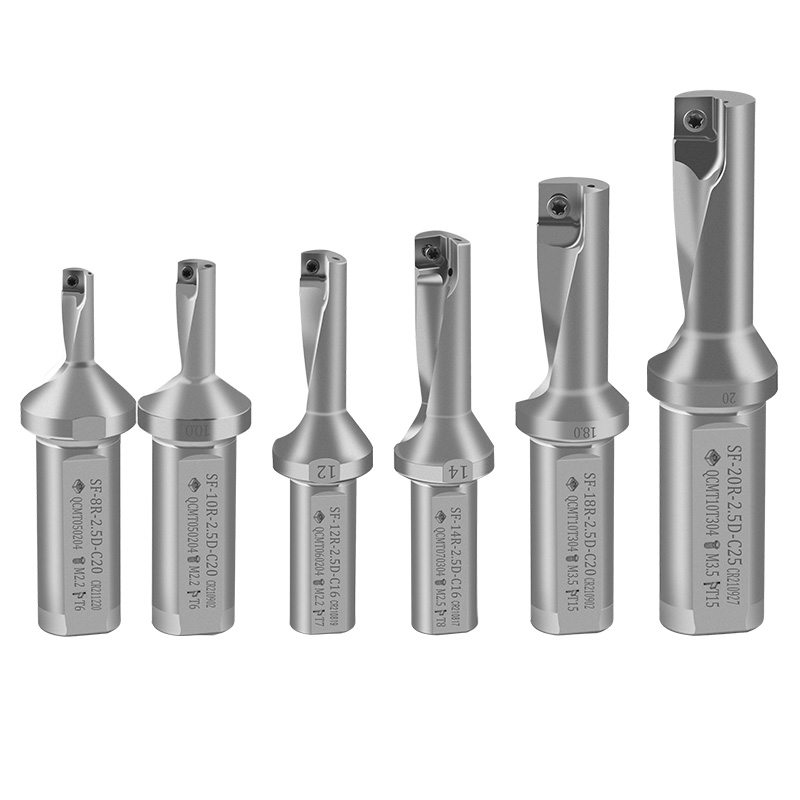

CNC車床專用SF單刃鉆頭多功能車削鉆孔刀桿

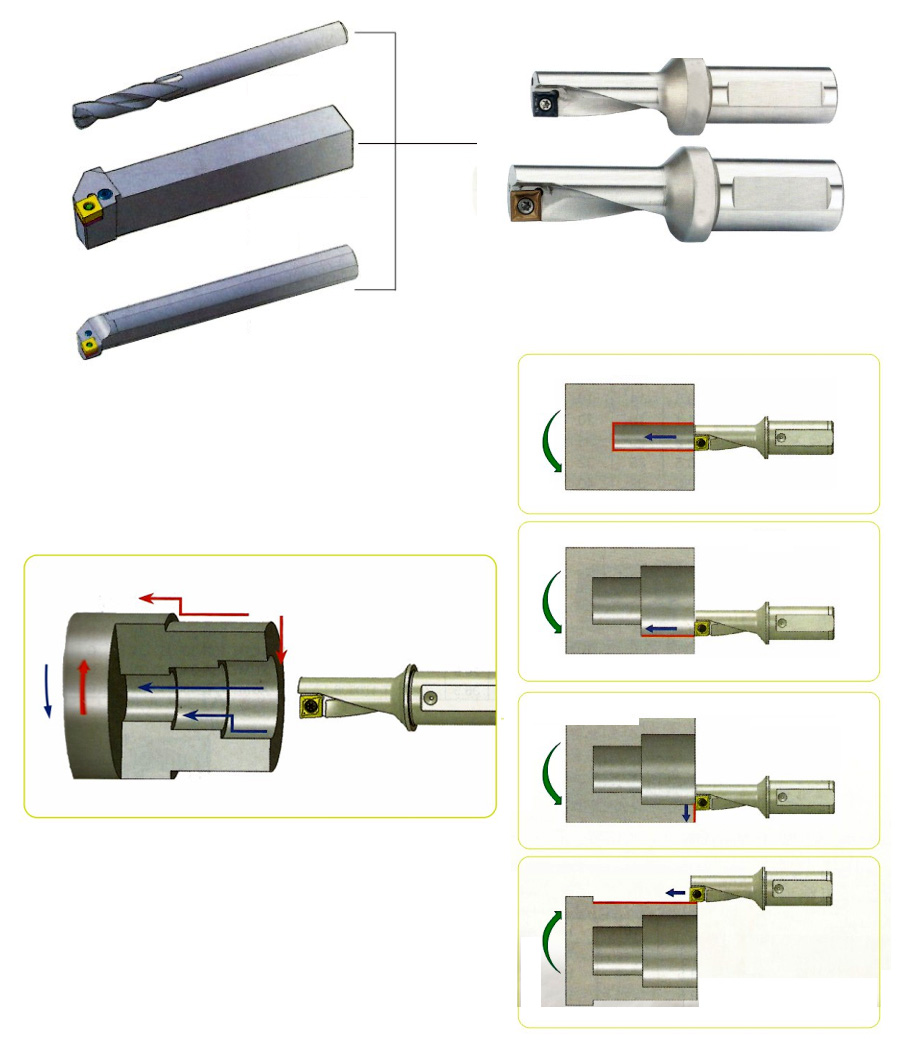

SF單刃鉆頭車削、鏜削、鉆削功能，使用一種刀具加工；節約安裝時間，縮短節拍，減少刀具使用數呈，節約刀具成本。

品名

SF單刃鉆頭QCMT

用途

車削，鉆孔，鏜削

產地

UNISEACP

SF單刃鉆頭車削、鏜削、鉆削功能，使用一種刀具加工；節約安裝時間，縮短節拍，減少刀具使用數呈，節約刀具成本。

SF單刃鉆頭車削

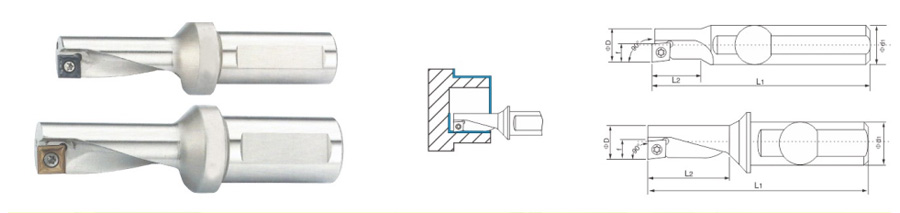

型號	直徑D	柄徑d1	總長L1	長度L2	刀片	螺釘
SF-8R-2D	8	12	81	16	QCMT050204	M2.0x4
SF-8R-2.5D	8	12	85	20	QCMT050204	M2.0x4
SF-10R-2D	10	12	85	20	QCMT050204	M2.0x5
SF-10R-2.5D	10	12	90	25	QCMT050204	M2.0x5
SF-12R-2D	12	16	89	24	QCMT060204	M2.0x5
SF-12R-2.5D	12	16	95	30	QCMT060204	M2.0x5
SF-14R-2D	14	16	93	28	QCMT070304	M2.5x7
SF-14R-2.5D	14	16	100	35	QCMT070304	M2.5x7
SF-16R-2D	16	20	104	32	QCMT080304	M3.0x7
SF-16R-2.5D	16	20	112	40	QCMT080304	M3.0x7
SF-18R-2D	18	20	108	36	QCMT10T304	M3.0x7
SF-18R-2.5D	18	20	117	45	QCMT10T304	M3.0x7
SF-20R-2D	20	25	118	40	QCMT10T304	M3.5x8
SF-20R-2.5D	20	25	128	50	QCMT10T304	M3.5x8
SF-25R-2D	25	32	134	50	QCMT130408	M5.0x10
SF-25R-2.5D	25	32	147	62.5	QCMT130408	M5.0x10
